The ASAHI Fielder FC Frontline Guide Wire is a classic frontline PTCA coronary guide wire developed by ASAHI, specially designed for complex coronary lesions such as stenosis and tortuous vessels. Constructed with an integrated stainless steel core and polymer jacket, it delivers outstanding slip performance, precise torque transmission and balanced support. The ultra-low 0.8g tip load ensures a soft and atraumatic distal end. A 3 cm platinum-nickel radiopaque segment provides clear visualization under fluoroscopy. Adopting a dual-coating system, the distal long-acting hydrophilic coating reduces intravascular friction, while the proximal PTFE coating guarantees stable pushing. It is available in straight and pre-formed J-tip configurations. With a standard outer diameter of 0.014 inch and two mainstream lengths (180 cm & 300 cm), it easily crosses severe stenosis, diffuse lesions and moderately tortuous vessels. As a preferred primary guide wire for coronary intervention, it is widely applied in coronary angiography, balloon dilatation, stent implantation and other routine & complex procedures.
Intended Use :
PCITotal Length :
180cm / 300cmOuter Diameter :
0.014” (0.36 mm)Distal Core Material :
NitinolDistal Coatings :
HydrophilicTip Load (g) :
0.8Radiopaque length :
3cmTip Shape :
Straight / JShelf Life :
3 yearsSterilization :
EOUsage Type :

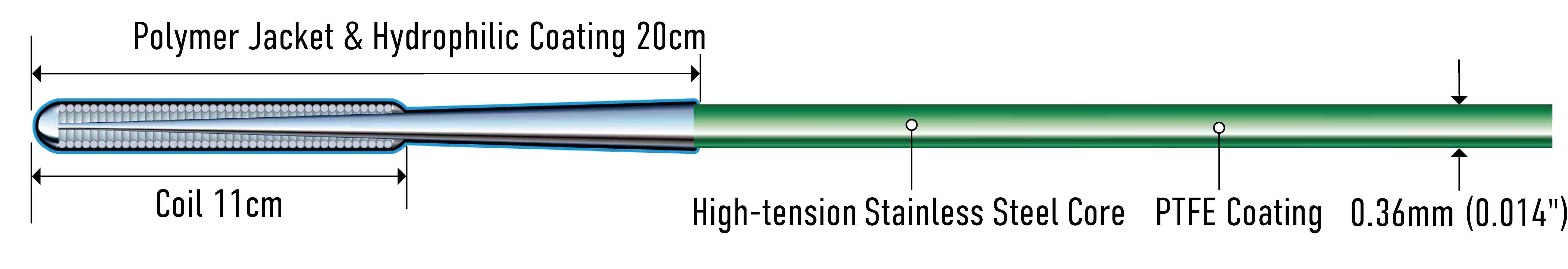

Single Use OnlyAs a frontline workhorse device for coronary intervention, the ASAHI Fielder FC Guide Wire adopts mature core and coating technologies to balance trackability, crossability and manipulability. The medical-grade stainless steel core features a robust structure with excellent bend and kink resistance, maintaining stable performance during prolonged operations. The 20 cm polymer jacket at the distal end is covered with professional hydrophilic coating, which forms a lubricating film rapidly when contacting body fluid. It effectively reduces friction between the wire and vessel wall, lowering the risks of vascular spasm and endothelial injury. The 3 cm high-visibility radiopaque coil ensures clear fluoroscopic visualization for accurate positioning and depth control. The 0.8g ultra-soft tip conforms naturally to vascular anatomy and adapts to various stenotic pathways. Straight and J-tip options cater to different anatomical conditions. The proximal PTFE coating optimizes push performance and realizes continuous, synchronous torque transmission with sensitive response. With practical specifications and full compatibility with mainstream coronary interventional devices worldwide, this ethylene oxide sterilized single-use device is ideal for routine and complex coronary procedures in catheterization labs of all medical institutions.

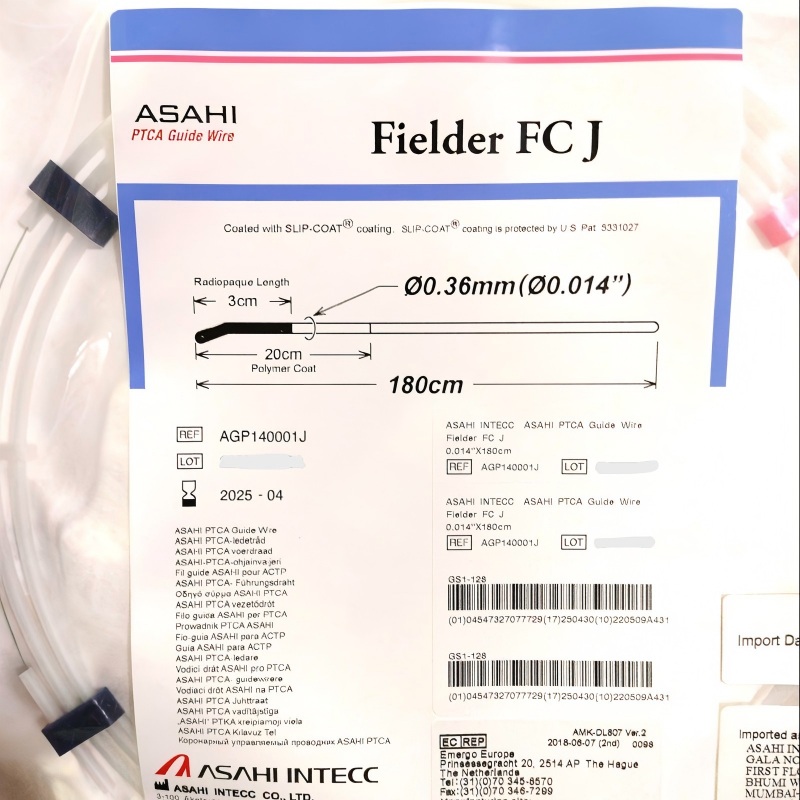

The guide wire is available in straight and pre-formed J-tip styles. A 3 cm platinum-nickel radiopaque coil is equipped at the distal end with a full dual-coating structure. It has a standard outer diameter of 0.014 inch and two standard lengths: 180 cm and 300 cm. This single-use sterile medical device is sterilized by ethylene oxide and individually packed.
| Coating | Distal: Hydrophilic; Proximal: PTFE |
| Core Material | Stainless Steel, Nitinol |
| Tip / Radiopacity | Platinum-Nickel Alloy, 3 cm Radiopaque Segment |
| Jacket / Cover | Full Polyurethane Polymer Cover |
| Usage | Single Use Only |
Widely used as a frontline coronary guide wire by interventional cardiologists worldwide, this device is not intended for cerebral vascular procedures. Typical applications are as follows:
Patient safety and consistent clinical performance are our core principles. The ASAHI Fielder FC Guide Wire is manufactured in internationally standardized cleanrooms in strict accordance with the ISO 13485 medical device quality management system. Every batch undergoes rigorous tests including torque performance, coating adhesion, kink resistance, tip durability, biocompatibility and sterility test to guarantee stable slip, manipulation and visualization performance. The product has obtained international certifications such as FDA and CE, complying with global standards for coronary interventional devices. Complete compliance documents are available to meet access requirements of medical institutions worldwide.
We supply full specifications of the ASAHI Fielder FC Coronary Guide Wire to hospitals, interventional departments and medical device distributors worldwide. Combined-spec bulk orders are supported. Customized supporting solutions and OEM/ODM services are available upon request. Please contact our sales team for wholesale pricing, shipping terms, lead time and regional compliance documents.
Yes. This guide wire features superior slip performance and balanced flexibility. The 0.8g soft tip is atraumatic, and the dual-coating greatly reduces crossing resistance. It can navigate moderately tortuous vessels and severely stenotic lesions smoothly, serving as the preferred frontline wire for such conditions.
No. This is a single-use sterile medical device. Re-sterilization and reuse will damage the hydrophilic coating, polymer jacket and core structure, leading to increased friction and malfunction. It may cause vascular injury and cross-infection. Reuse is strictly prohibited to ensure patient safety.
Absolutely. We cooperate with professional international logistics providers to fulfill global B2B bulk orders. OEM services and complete compliance documents are available. Please inform us of your specifications and quantity, and we will provide a customized quote and estimated lead time.
