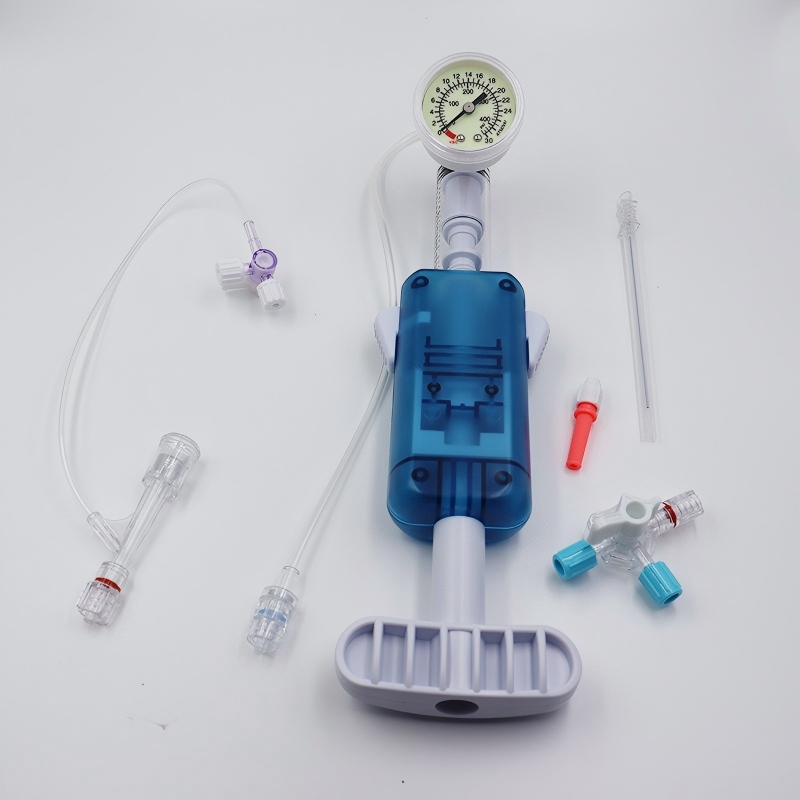

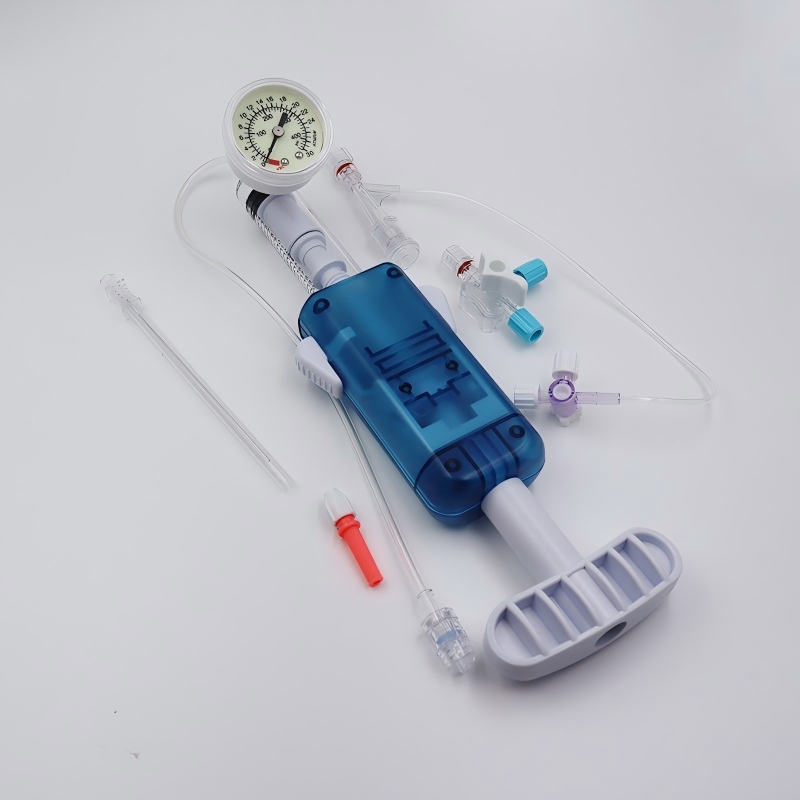

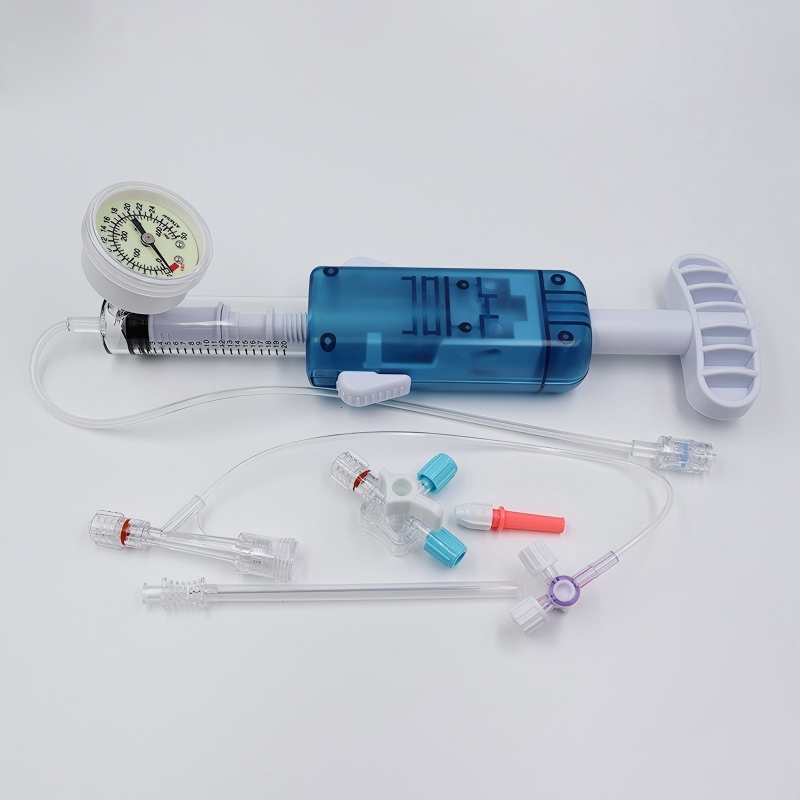

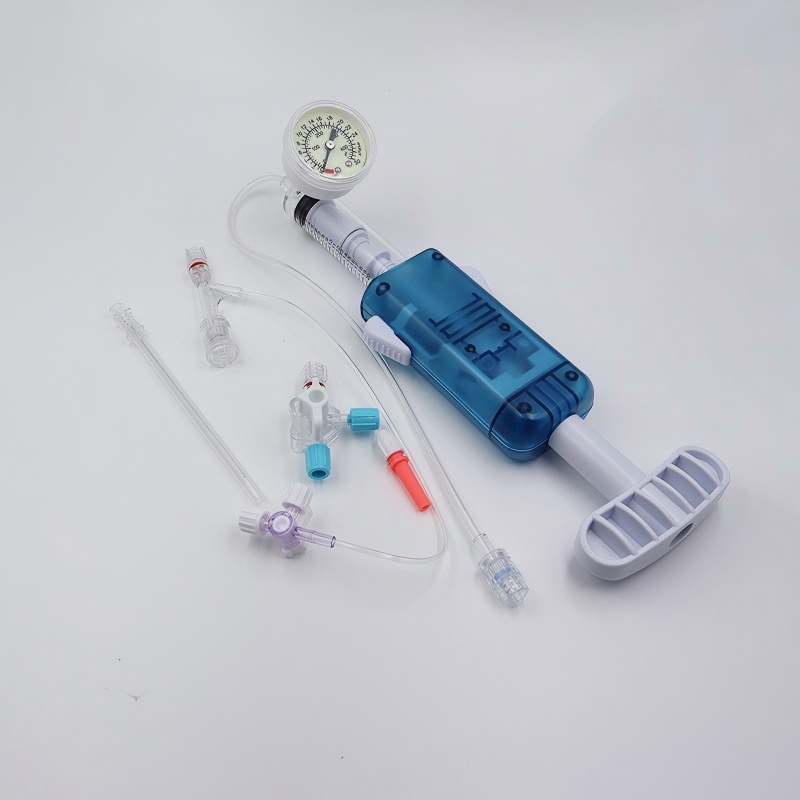

The PTCA Cardiovascular Surgery Balloon Inflation Device is a core supporting instrument for Percutaneous Transluminal Coronary Angioplasty (PTCA) and Percutaneous Coronary Intervention (PCI). It is specially designed for precise inflation, pressure maintenance and deflation of balloon catheters. Adopting an ergonomic integrated structure, it is equipped with a high-precision pressure gauge and safety locking device to monitor and stably adjust internal balloon pressure in real time, so as to accurately complete vascular dilatation and stent apposition during operations. The device is fitted with a kink-resistant extension tube and standard Luer connector, compatible with mainstream coronary and peripheral vascular balloon catheters. As a disposable sterile device, it features simple one-hand operation for inflation and deflation, effectively reducing cross-infection risks. With high pressure control accuracy and comprehensive safety protection, it is widely used in minimally invasive cardiovascular interventional procedures in cardiology and interventional departments, and serves as an essential basic device in catheterization labs.
Intended Use :
PCIStandard Volume :
20ml / 25ml / 30mlMaximum Output Pressure :
Standard: 30atm; High-pressure: 40atmShelf Life :
3 yearsSterilization :
EOUsage Type :

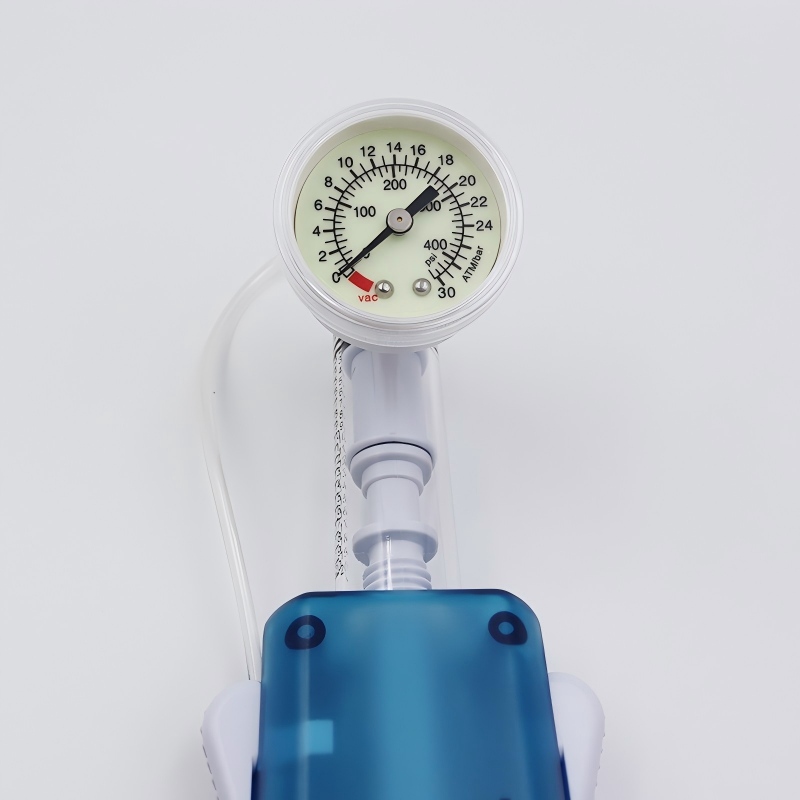

Single Use OnlyDeveloped to meet clinical demands of cardiovascular interventional procedures, this PTCA Balloon Inflation device mainly consists of pump body, plunger rod, high-precision pressure gauge, safety locking valve, deflation button and kink-resistant extension tube. The pump body is made of medical high-strength transparent polypropylene, which is pressure-resistant and leak-proof, allowing direct observation of contrast medium or saline volume. The pressure gauge with fluorescent scales ensures clear reading even in dim operating environments. Its pressure range covers commonly used clinical values, adapting to conventional balloons, non-compliant balloons, drug-coated balloons and other types of interventional balloons. The ergonomic handle enables smooth and labor-saving pushing, pulling and rotating. The mechanical safety lock can fix the target pressure and prevent abnormal pressure fluctuation during operations. The flexible extension tube made of medical polymer features excellent kink resistance and tight sealing. Standard Luer connectors at both ends ensure stable connection and easy assembly. Available in standard and high-pressure models, the maximum output pressure reaches 30atm or 40atm, with volumes of 20ml, 25ml and 30ml for selection. Sterilized by ethylene oxide and designed for single use, it eliminates re-sterilization work, simplifies preoperative preparation and greatly improves surgical efficiency and clinical safety.
The complete kit consists of outer sheath, tapered dilator, hemostatic valve, three-way stopcock, puncture needle and guide wire. Skin scalpel is optional for selected models. The shaft adopts three-layer composite structure with full distal hydrophilic coating. The entire shaft is equipped with radiopaque materials and platinum-iridium markers. Outer diameter is measured in French (Fr) with mainstream clinical sizes and multiple standard lengths. Sterilized by ethylene oxide, the device is individually packed in sterile pouch for single use.
| Standard Volume | 20ml / 25ml / 30ml |
| Maximum Output Pressure | Standard: 30atm; High-pressure: 40atm |
| Safety Configuration | Mechanical pressure lock valve + One-click rapid deflation button |
| Usage | Single Use Only |
As a dedicated auxiliary device for cardiovascular intervention, this product is mainly used in cardiology, interventional departments and vascular surgery for minimally invasive procedures via radial or femoral artery approaches:
Patient safety and clinical efficacy are our top priorities. The PTCA Cardiovascular Surgery Balloon Inflation Device is manufactured in Class 10,000 standardized cleanrooms in strict accordance with the ISO 13485 medical device quality management system. Every batch undergoes rigorous tests including pressure resistance test, tightness test, pressure gauge accuracy calibration, tube kink resistance test, biocompatibility test and sterility test to ensure accurate pressure control, reliable sealing and smooth operation. The product has obtained multiple international authoritative certifications such as EU CE and US FDA, complying with global safety standards for interventional medical devices. Complete registration and compliance documents are available to meet market access requirements of hospitals, specialized clinics and medical device distributors worldwide.
We supply a full range of PTCA balloon inflation devices to hospitals, interventional departments and medical device distributors worldwide. Combined-spec bulk orders are accepted. Custom tube lengths, dial markings and exclusive packaging solutions are available upon request, together with OEM/ODM services. Please contact our sales team for wholesale pricing, shipping terms, lead time and regional compliance certification documents.

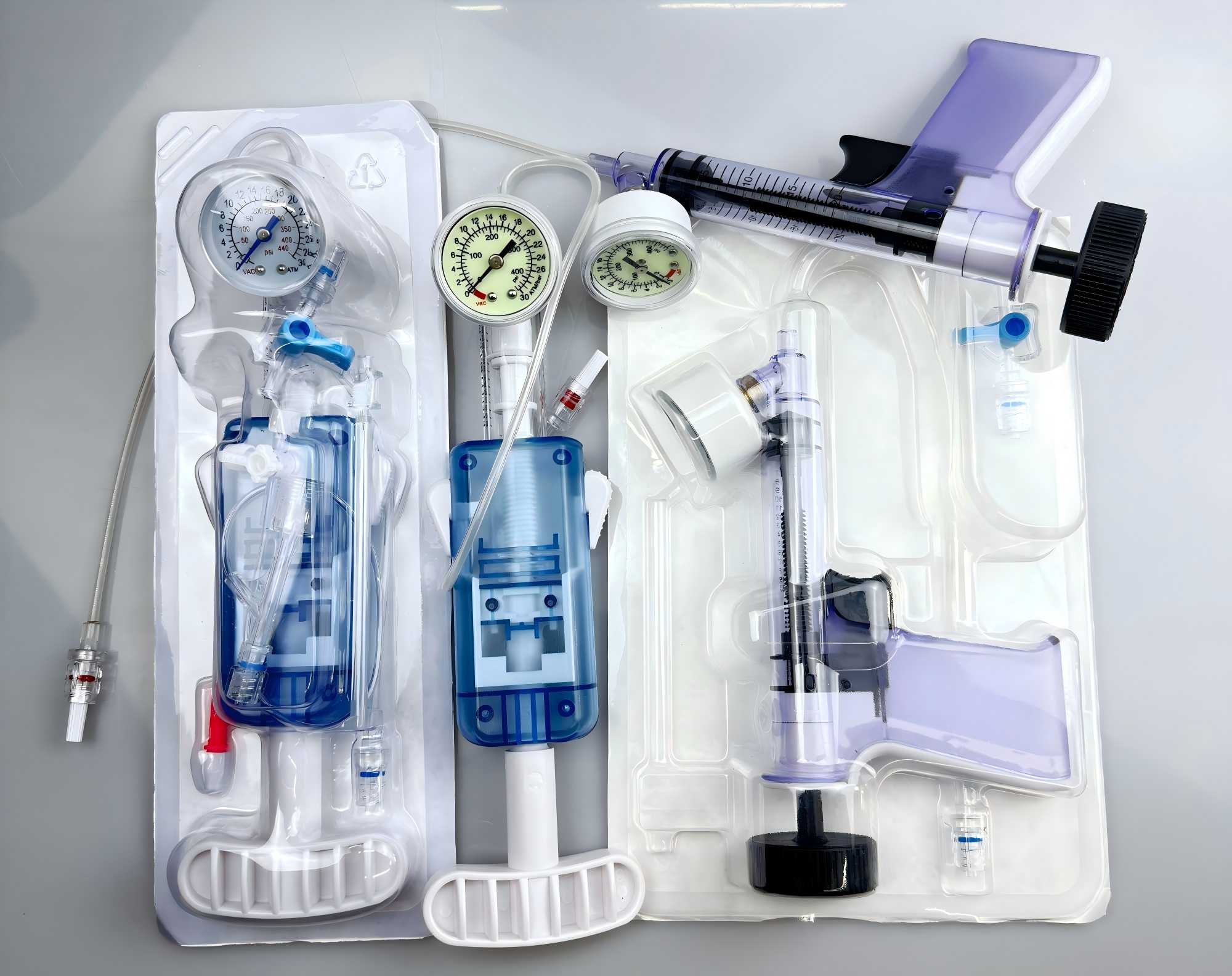

This product has two models. The standard model provides a maximum output pressure of 30atm for conventional balloons and drug-coated balloons. The high-pressure model reaches 40atm, which is mainly used for non-compliant balloons and procedures for calcified lesions requiring high pressure.
No. This is a single-use sterile medical device. Re-sterilization and reuse will cause aging of seals, reduced accuracy of pressure gauge and tube damage, leading to leakage, pressure out of control and cross-infection. Reuse is strictly prohibited to ensure patient safety and surgical accuracy.
Absolutely. We cooperate with professional international logistics providers to fulfill global B2B bulk orders. Custom tube lengths, product markings and packaging styles are available, along with complete compliance documents. Please inform us of your required specifications and quantity, and we will deliver a customized quote and estimated lead time.
